Belegung des Steckverbinders am Receiver A10780
BNC Pin PCB Pin Funktion
-----------------------------------------------------------------
1 (LL,F) 1 ~MEAS (Zeeman beat signal pair from
2 (UL,F) 2 MEAS differential line driver.)
3 (LR,M) 3 Return (also BNC shell and receiver case).
4 (UR,M) 4 +15 VDC
BNC Pin PCB Pin Funktion
-----------------------------------------------------------------
1 (LL,F) 1 ~MEAS (Zeeman beat signal pair from
2 (UL,F) 2 MEAS differential line driver.)
3 (LR,M) 3 Return (also BNC shell and receiver case).
4 (UR,M) 4 +15 VDC

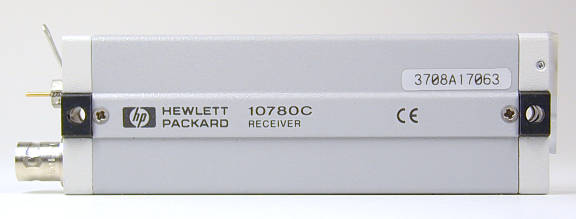

Receiver A10780
